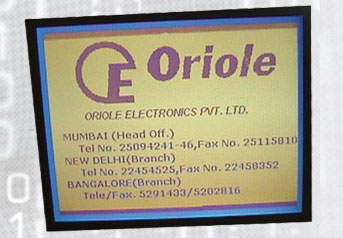

   GRAPHICAL LCD MODULES




 Name / Model
 Number
  Module Size
  in mm
  (L x W x H )

  Viewing  Area
  in mm
  (L x W)
  Dot Size
   in mm
   (L x W)
  Operating
  Voltage
  Controller
 128 x 64
 OGM 12864 - 3 SL
 75 x 52.8 x 9
 60 x 32.6
 0.43 x 0.43
 + 5V DC
  Toshiba controller
 OR Segment
 drivers only
 OGM 12864SL
 93 x 70 x 12.5
 70.7 x 38.8
 0.48 x 0.48
 + 5V DC
  Toshiba controller
 OR Segment
 drivers only
 240 x 128
 OGMT 24011 SF
 144 x 104 x 15.6
 114 x 64
 0.4 x 0.4
 + 5V & 12V DC
  6963 Toshiba
 Controller - can
 display both
 graphics & text
 simultaneously
 OGMY 24011 SF
 144 x 104 x 15.6
 114 x 64
 0.4 x 0.4
 + 5V & 12V DC
  LC 7981 Sanyo
 controller- displays
 either graphics and
 text simultaneously
 240 x 64
 OGMT 24064 SL
 180 x 65 x 13.9
 132 x 39
 0.49 x 0.49
 + 5V  DC
  6963 Toshiba
 Controller - can
 display both
 graphics & text
 simultaneously
 320 x 240
 OGM 32022 SF
 147.8 x 126 x 19.3
 115.7 x 86.3
 0.33 x 0.33
 + 5V DC
  Epson 1335
 controller





 --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
