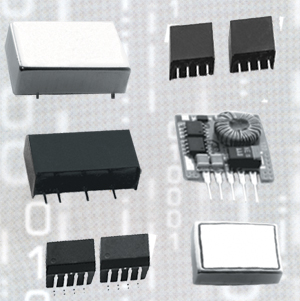

DC-DC Converters
Choose from our range of low powered DC DC
Converters for applications including
distributed power systems, mixed
analog/digital subsystems, portable test
equipments, local power networks and battery
backed systems
Salient features of our converters include
high isolation, high efficiency, ultra-wide
(4:1) input voltage ranges, SMT technology,
cUL/UL 1950 & EN60950 safety approvals, RoHS
compliance and a 2 year warranty.
|
|
|
Output
Power
(W) |
Input Voltage (VDC)
|
Output Voltage (VDC) |
I/O
Isolation
(VDC) |
Available packages
|
|
Nominal
|
Range
|
|
1 |
5, 12, 24 |
+ 10%
|
3.3, 5, 9, 12, 15,+5, +9, +12, +15 |
Up to 6000 |
7 Pin SIP;
4 Pin SIP;
8 Pin SMD; 10 Pin
SMD; 12 Pin SMD |
|
1.5 |
5, 12, 15 |
+10% |
5, 12, 15,5,+12, +15 |
8000 |
24 Pin DIP |
|
2 |
5, 12, 24; 48 |
+10% |
3.3, 5, 12, 15, +5, +12, +15 |
Upto 5600 |
7 Pin SIP;
8 Pin SIP;
24 Pin DIP; 16 Pin
SMD; 24 Pin DIP |
|
2-3 |
5, 12, 24,48 |
2 : 1 |
3.3, 5, 12, 15,+5, +12, +15 |
Up to 300 |
24 Pin DIP |
|
3 |
5, 12, 20, 24, 48 |
2 : 1 |
5, 12, 15, +12, +15 |
Up to 4200 |
24 Pin DIP/SMD |
|
3-4 |
24, 48 |
4 : 1 |
3.3, 5, 12, 15 , +5, +12, +15 |
1500 |
24 Pin DIP |
|
5-6 |
5, 12, 24, 48 |
2 : 1 |
3.3, 5, 12, 15 , +5, +12, +15 |
1500 |
24 Pin DIP |
|
10 |
5, 12, 24, 48 |
2 : 1 |
2.5, 3.3, 5, 12, 15, 24 , +5, +12, +15 |
1500 |
1" x 2" x 0.4" |
|
15 |
12, 24, 48 |
2 : 1 |
3.3, 5, 12, 15 , +12, +15 |
1500 |
1" x 2" x 0.4" |
|
20 |
12, 24, 48 |
2 : 1 |
3.3, 5, 12, 15 , +12, +15 |
1500 |
1" x 2" x 0.4" |
|
25-30 |
12, 24, 48 |
2 : 1 |
2.5, 3.3, 5, 12, 15 , +12, +15 |
1500 |
1.6" x 2" x 0.4" |
|
 |
|
SMPS
Oriole has developed over 15 SMPS models based on
specific customer
requirements. These models have an
input of 90-270VAC and an output
ranging from 3.3-24V and 5-20Amps. Satisfied customers for
SMPS include BEL, BARC and ECIL. Contact us with
your specific SMPS requirements. |
 |
LED Drivers
Oriole Electronics has a standard range of
LED Drivers along with some customized
solutions to keep
abreast with the latest in the lighting
arena. Our Principals Supertex are leading
manufacturers in LED Driver ICs and using
this technology Oriole has developed its
own in-house compact, reliable, cost
effective constant current drivers.
Features:
Constant current drivers
Light weight and compact in size
IP65 protection assured
Short circuit and over voltage protections
Drives LEDs in series connection |
Applications:
Indoor general lighting
Spot lights
Architectural lighting
Garden lights
Contact us for details on current and power ratings |
| |
|
|
